Advanced Solutions
for the most efficient Filtration and smart Process management.EQUIPMENT

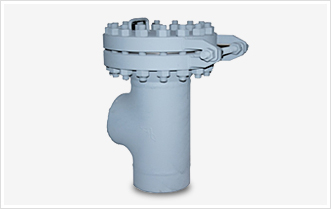

STRAINER
각 공정에 필요한 STRAINER를 디자인, 설계, 제작, 테스트의 TOTAL SERVICE를 제공합니다.
* SPECIFICATIONS
| Stress analysis code | ASME Section VIII Division 1. | |
|---|---|---|
| Connection Flange | JIS B 2210, ANSI B 16.5, DIN, etc. | |
| Flange Rating | #150, #300, #400, #600 | |
| Materials | Body | Carbon Steel, Stainless Steel, etc. |
| Filter | Carbon Steel, Stainless Steel etc. | |
| Packing | NBR, EPDM, PTFE, Viton, Non-Asbestos, SWG, etc. | |
| Punched pipe | Ø2~ Ø12 | |
| Mesh | #2 ~ #400 / 111000 ~ 35micro | |
| Lifting | Handle, Davit, Lug, etc. | |
| Cover bolting | Hinge, Stud, Hexagon, etc. | |
| Vent / Drain type | Screw, Flange, Valve, etc. | |
| Coating | Epoxy, NBR, PE, Hot Dipped Galv, etc. | |
| Liquid name | Oil, Water, etc. | |

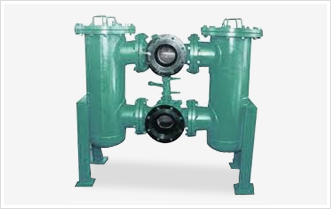

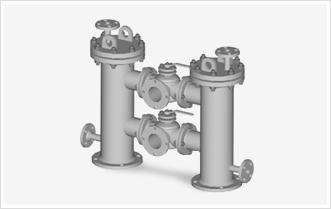

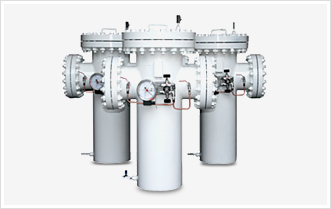

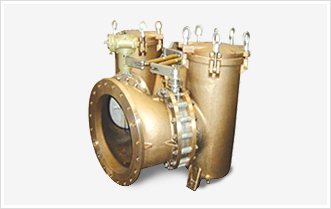

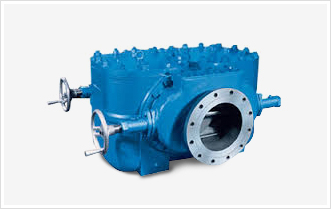

TLS-DUPLEX TYPE
- BUTTERFLY VALVE TYPE
- MULTI TYPE
- 3-WAY BALL VALVE TYPE

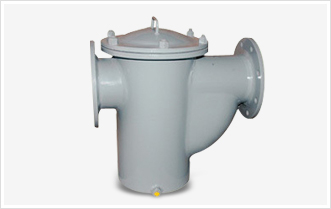

TLS-BUCKET TYPE (SIMPLEX)
- CASING
- STEEL PLATE

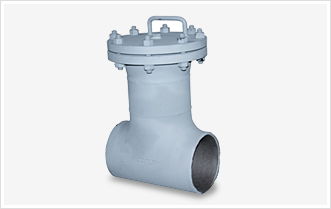

TLS-TEE TYPE
- STRAIGHT FLOW TYPE
- ANGLE FLOW TYPE

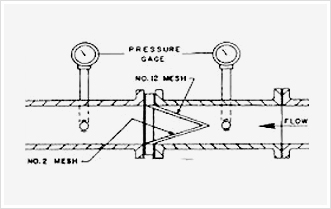

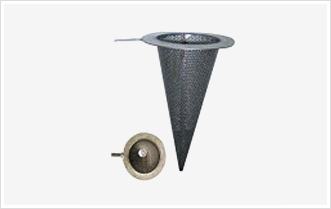

TLS-CON TYPE (TEMPORARY -STRAINER)

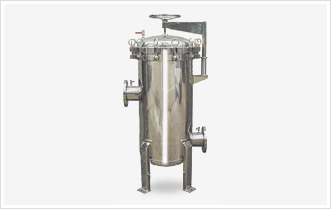

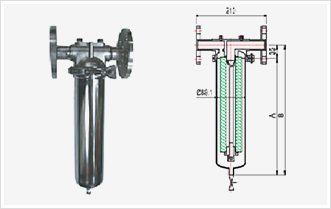

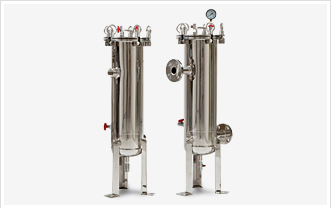

FILTER HOUSING
필터 시스템에 필요한 하우징을 디자인, 설계, 제작, 테스트의 TOTAL SERVICE를 제공합니다.
* SPECIFICATIONS
| Stress analysis code | ASME Section VIII Division 1. | |
|---|---|---|
| Connection Flange | JIS B 2210, ANSI B 16.5, DIN, etc. | |
| Materials | Housing | Carbon Steel, Stainless Steel, etc. |
| Packing | NBR, EPDM, PTFE, Viton, Non-Asbestos, SWG, etc. | |
FILTER HOUSING

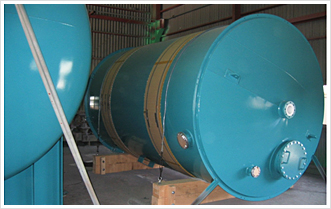

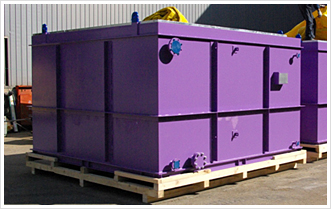

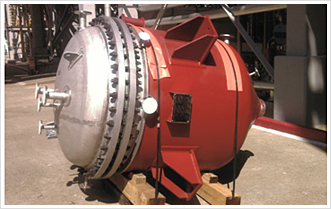

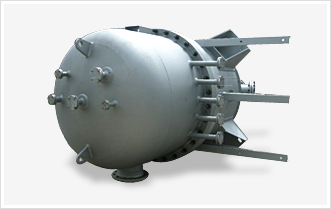

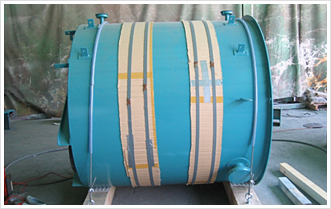

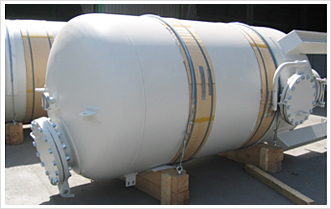

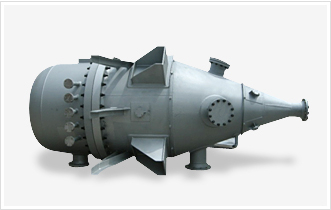

Pressure Vessel & Tank
각 공정에 필요한 압력 용기 및 탱크를 디자인, 설계, 제작, 테스트의 TOTAL SERVICE를 제공합니다.
* SPECIFICATIONS
| Stress analysis code | ASME Section VIII Division 1. |
|---|---|
| Connection Flange | JIS B 2210, ANSI B 16.5, DIN, etc. |
| Materials | Carbon Steel, Stainless Steel, onze, etc. |
압력용기 및 탱크
